The 620,  is a high-performance potentiostat/galvanostat/ZRA particularly suitable for applications in physical electrochemistry, sensors, coatings, and corrosion.

Under Glove Box

Designed for fast, low-current measurements

• Maximum Applied Potential - ±11 V
• EIS - 10 μHz - 5 MHz

For techniques including:

• Physical Electrochemistry
• Pulse Voltammetry
• Electrochemical Energy

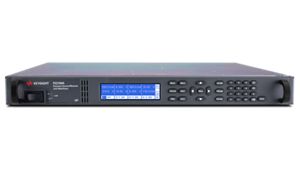

Keysight PZ2100A is the precision source / measure unit (SMU) mainframe with:

PZ2110A High-Resolution Precision SMU:

• Maximum output at 210 V, 315 mA DC / pulse
• Minimum resolution at 500 nV / 10 fA
• Low current measurement noise at 30 fArms with 1 power line cycle (PLC)
• Minimum pulse width at 20 μs
• Fast Digitizer Mode with maximum sampling rate at 1.25 MSa/s
• Fast transient with 1.5 V/μs maximum slew rate

PZ2121A High-Speed Precision SMU:

• Maximum output at 60 V / 3.5 A DC / 10.5 A pulse
• Minimum resolution at 6 μV/100 fA
• Low current measurement noise at 400 fArms with 1 power line cycle (PLC)
• Minimum pulse width at 10 μs
• Fast Digitizer Mode with maximum sampling rate at 15 MSa/s
• Wide dynamic range for dynamic measurement with seamless current measurement ranging
• Fast transient with 3.5 V/μs slew rate at max.

Standard Ex Situ Configuration - Film Sence FS-1

• 65° Angle of Incidence.
• Manual sample loading and height adjustment.
• Sample sizes up to 200 mm dia. and 20 mm in thickness.
• Sample tilt with +/-2° range.
• Beam size on sample: 4 x 9 mm.
• Compact footprint (180 x 400 mm) and light (5 kg).

Chamber volume

Ca. 10,5 litres

Housing

W 425 mm / 525 mm
H 275 mm / 257 mm
D 450 mm / 420 mm

Generator

• 40 kHz / 0 - 200 W
• 13,56 MHz / 0 - 300 W

Controls

• Manual
• Basic PC
• Low Cost PC

Example of use

• Laboratory / small series

Vacuum chambers

Borosilikat (HP) or quartz glass (UHP) round with cover: Ø 211 mm, D 300 mm

• Ranges: ± 2,5 V, ± 5 V, ± 10 V. ± 10 V adjustable (example 0 - 20 V). Up to 60 V with FlexP0060/FlexP0160.
• Accuracy: < 0.1 % FSR* (20 mV)
• Resolution: 76 µV below 10 V, 152 µV from 10 to 15 V, 305 µV from 15 to 20 V
• EIS capability: 1 MHz to 10 µHz
• EIS quality indicators: Yes (with "e" type channel board)

• Measurement channels: 1
• Working temperature: 15 to 65 °C, 4 to 150 °C using accessory chamber (QSense High Temperature chamber)
• Sensors (frequency range): 5 MHz (1-72)
• Number of measured harmonics: 7, allows for full viscoelastic modeling

• Dual Source capable
• The Polaris™ long-life IR source
• Tungsten-Halogen white light source
• Three detectors for the main sample compartment
• High-resolution standard
• Validation wheel standard
• All gold optics standard (aluminum available)
• Full support for existing accessories
• Energy screens for high-res motorized (standard)
• Optional purge shutters
• Optional motorized filters
• Optional motorized polarizer
• Collimated or focused emission port

The PS8 Prober Shuttle is already the most compact and highly integrated nanoprobing system in the market. Nonetheless, we found a way to add positional encoders to the platform. This latest feature enables fast and efficient nanoprobing workflows.

Overview

• Total height: 10 mm

• Total width: 140 mm

• Maximum sample area: 20 mm x 20 mm

• Maximum sample height: 20 mm - depending on the sample area and load lock dimensions

• Weight: 200 g + SEM/FIB dovetail

• Clean cable management from flange to rack

• Non-magnetic design

• Ready for 3 nm and beyond

Next generation micromanipulators

• Operating range: A = 5 mm, B = 90°, C = 5 mm

• Resolution: A < 0.05 nm, B < 0.5 nm, C < 0.05 nm

• Low drift: 1 nm/min

Encoder features

• Park & restore probes with a click of a button

• Drive substage to pre-defined locations

• Fast cycle time

• Automatic tip pre-alignment allows lowkV workflows

Low-capacity, low-current measurements

• Noise: 25 fA @ 1 Hz

• Insulation leakage current: <50 fA/V

• Signal conductor resistance: <5 Ω

• Maximum voltage: 100 V

• Maximum current: 100 mA
